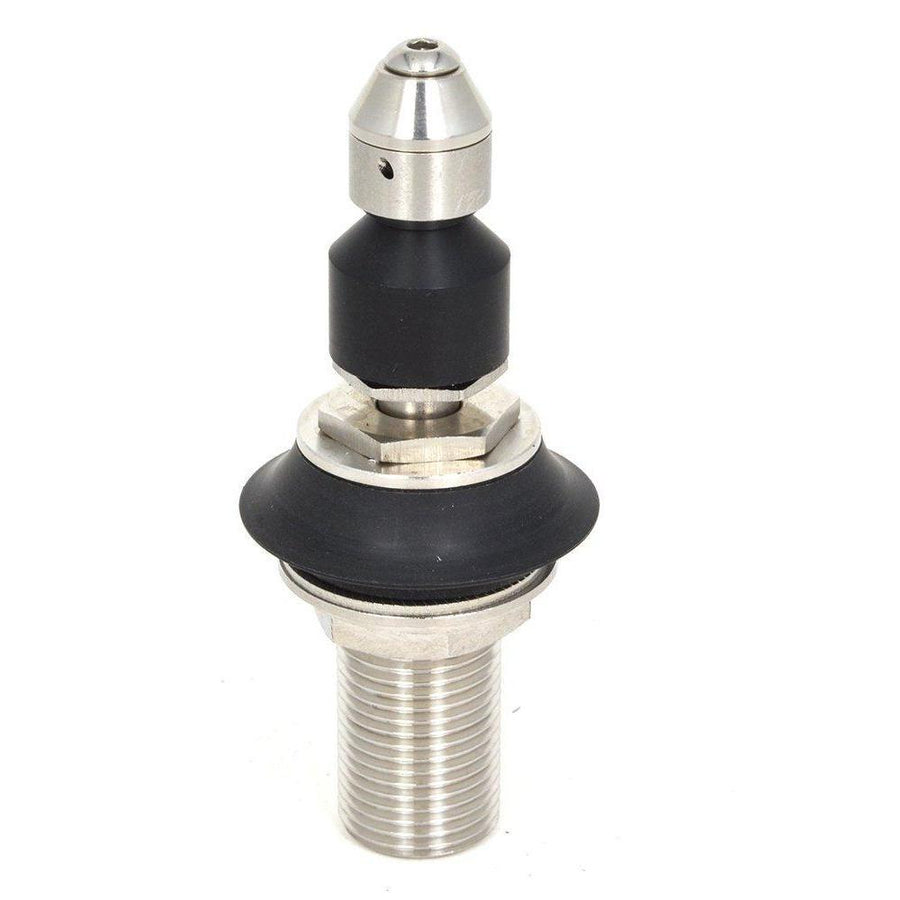

Rhino Pitcher Terry Rinser Valve for SpinJet

Cleaning never needs to be a chore with Rhino's custom Valve and SpinJet mechanism. This neat piece of kit is what makes Rhino rinsers so great. This valve sprays and spins simultaneously, resulting in a highly effective mechanical cleaning action that is a cut above regular rinsing valves. The Rhino Pitcher Terry Rinser Valve (replacement spare part) and SpinJet will make cleaning your coffee gear a breeze.

Rhino Coffee Gear Spinjet Spray Assembly with Actuator Plate has a new Spinjet Valve which sprays and spins at the same time to create a more effective cleaning action. This new design is ideal for plungers, pitchers, and other vessels which are often difficult to clean. This set is a suitable upgrade for most spray mechanisms and pitcher rinser spray assemblies.

Specifications:

• Connection: External 1/2" thread. Recommended install parts CI321214S and CI221212W.
• Height inclusive of assembled actuator star: 110mm
• Star Diameter: 135mm
• Cold water use only
• NSF certified
• Please note: If you are retro-fitting the Rhino Coffe Gear Spray Assembly to a current rinser with drain tray, we recommend seating the Actuator Plate under the drain tray to ensure that the full and correct action can be achieved when depressed.

 Replacing o-rings on spinjet instruction

 Rhino Coffee Gear Spinjet Mechanism Exploded View(Size: 354.7 KB)

Tip from the CoffeeNose: Don't forget to add food grade silicone lubricant like Molykote or Haynes!
